New Technology HD Led Screen , Flexible Indoor Led Video Wall
Product Description
1. Die-casting aluminum, secure and nice in constitution.
2. No fans, mute when operation.
3. Dustproof, IP43.
4. High refresh rate and high gray depth.
5. Completely black LED with high contrast.
6. Standard cabinet size is 500mm x 500mm and 480x480mm.
7.Large viewing angle, the panel viewing angle is up to 140, the vertical angle could reach 140, the image won't be out of shape and color cast between the rang.
8. Exactly connected and easy to install and dismount.
Technological Parameters
| Pixel Pitch | 3.9mm | 4.8mm | | |
| LED type | RGB 3in1 SMD2121 | RGB 3in1 SMD2121 | |
| Pixel Density(dot/s.q.m) | 65536 | 43402 | | |
| Resolution(WxH) | 128*128dot | 104*104 dot | | |

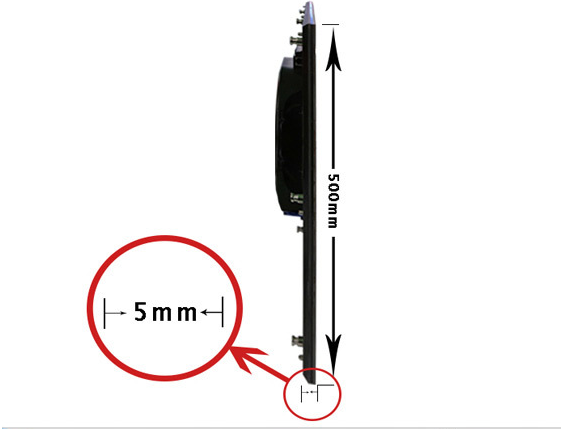

| Cabinet size | 500x500x5mm | |
| Weight | 3.7kg | 3.7kg | | |
| Waterproof rate | IP43 | |
| Brightness | 1200nits | 1200nits | | |
| View Distance | 3m | 4m | | |
| Viewing Angle (H/V) | 140°/120° |
| Gray Scale | 14bit |
| Color type | 68 Billion |
| Max.Power Consumption | 250W/PCS | 120W/PCS | 120W/PCS | |
| Ave .Power Consumption | 130W/PCS | 60W/PCS | 60W/PCS | |
| Refresh rate | 1960Hz |
| Gamma | -5.0~+5.0 |
| Applied environment | INDOOR/OUTDOOR | |
| Controller | Synchronous display with control PC by DVI |
| Support Input | Composite ,S-Vide ,Component ,VGA,DVI,HDMI,HD_SDI |
| Power input | AC 110-220V±10% |
| Environment | temperature -10°C~+50°C,humidity 10~90% RH |
| Operating Life | 50,000hours |
FAQ
Q1: What's the pixel pitch for Indoor LED Display Screen ?
A1: Indoor&Outdoor (3.9mm / 4.8mm/)
Q2: Where is it used for?
A2: Indoor & rental use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with Novastar controlling system.
Q4: What's the controlling system?
A4: Our standard controlling system for this model is Novastar. Also support other controlling system, like Linsn, etc.
Q5: How about the size of project?
A5: Please offer the size with "width by height" of project. We wil offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.
Our Services
Fiddle Faddlehas a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
Product Tags:
|
|
Die-Casting Aluminum HD LED Wall With Epistar / Cree / Nichia Chip Images
|
